Relab Development 展现的硬件建模实力大家都有目共睹，

现在他们又带来了一款新的产品，建模自经典 176 压缩限制插件的 Relab 176，让我们来看看！

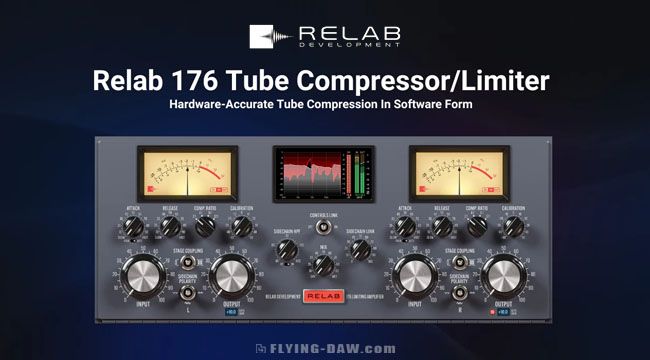

​Relab 176 Compressor/ Limiter

Hardware-Accurate Tube Compression In Software Form​点击展开…

Relab 176 压缩器/限幅器

以软件形式再现精确的硬件级电子管压缩

​This is the Relab 176 Compressor/ Limiter

Accurately modeled from the entire audio circuit of a vintage 1960s 176-style compressor: every tube, transformer, timing network, and power supply interaction is re-created using a real time circuit solver.

This preserves the tone, timing, and dynamic behavior of the original hardware.​点击展开…

这是 Relab 176 压缩器/限幅器

精准建模 1960 年代经典 176 型压缩器的完整音频电路：通过实时电路 Circuit Solver 重现每一根电子管、变压器、时序网络与电源系统的交互作用。

完整保留原始硬件的音色特性、时序响应与动态表现。
​Hardware-Accurate from Input to Output

The Relab 176 reproduces everything: the tone, timing, and dynamic behavior of the hardware.

Every tube stage, transformer, and timing network responds as it does in the original.​点击展开…

从输入到输出的硬件级精准还原。

Relab 176 再现了硬件的所有特性：音色特性、时序响应与动态表现。

每个电子管级、变压器和时序网络均与原始硬件保持一致的响应特性。
​Compression That Adapts to the Music

Fixed-threshold, variable-gain design where ratio, drive, and source material interact to shape timing, curve, and harmonics.​点击展开…

自适应音乐内容的压缩处理

采用固定阈值、可变增益设计，通过比率、驱动量与源素材的交互作用塑造时序特性、曲线形态与谐波结构。
​Instant Control Over Tone and Transients

Switchable interstage transformer, asymmetry detection, and calibration trims allow quick changes to character and transient handling.

Put the 176’s tone, timing, and control into your next mix – and hear it for yourself.​点击展开…

瞬时掌控音色与瞬态响应

可切换级间变压器、非对称检测与校准微调功能，快速调整声音特性与瞬态处理方式。

将 176 标志性的音色质感、时序控制融入你的下一首混音作品——亲耳聆听其非凡魅力。

​Features That Preserve the 176’s Sound – and Expand Its Workflow

Ratio-Driven Knee Behavior for Nuanced Dynamics

The Relab 176 follows the original fixed-threshold design with four hardware ratios -2:1, 4:1, 8:1, and 12:1.

Knee position and slope change with each ratio, producing compression that ranges from smooth leveling to assertive limiting.

Compression intensity adapts naturally, ensuring nuanced dynamic shaping at every setting.​点击展开…

特色功能：继承 176 的经典之声，拓展工作流程新维度

比例驱动拐点特性，实现细腻动态处理

Relab 176 延续原版固定阈值设计，提供四组硬件级比例：2:1、4:1、8:1 与 12:1。

拐点位置与斜率随比例值智能变化，实现从平滑电平调节到强势限幅的压缩效果。

压缩强度自适应变化，确保在任何设置下都能实现细腻的动态塑形。

​Program-Dependent Timing from True RC-Tube Interaction

Attack and release times come from resistor-capacitor networks directly coupled to the tube gain stage.

Timing is program-dependent, shaped by signal level, transient size, tube nonlinearity, and transformer interaction — not fixed millisecond values.

The Fixed/Auto toggle changes how release adapts to the program​点击展开…

基于真实 RC-电子管交互的程序依赖时序

启动与释放时间源于直接与电子管增益级直接耦合的电阻-电容网络。

时序响应完全依赖程序内容，由信号电平、瞬态强度、电子管非线性特性及变压器交互共同塑造——而非固定的毫秒值。

固定/自动切换开关可改变释放时间对程序内容的适配方式

​Polarity-Selective Detection for Targeted Transient Control

The Sidechain Polarity control in the Relab 176 changes how the detector responds to the positive, negative, or both halves of the waveform.

This lets you target specific transient edges — for example, clamping kick drum attack without touching low-end body,

or controlling plosives in vocals without affecting overall presence.​点击展开…

极性选择检测实现精准瞬态控制

Relab 176 的侧链极性控制可改变检测器对波形正半周、负半周或完整波形的响应方式。

由此可精准锁定特定瞬态边缘——例如限制踢鼓冲击力而不影响低频主体，

或控制人声爆破音同时保持整体明亮度。

​Transformer Path for Sub-ms Attack, Resistor Path for Vintage Thump

The Stage Coupling switch changes how the variable-gain tube stage connects to the output amp:

Transformer – Adds a transformer between stages for faster attack (sub-ms possible), subtle “smiley curve” tone, and reduced low-end wobble.

Resistor – Uses a resistor path for slower attack, flatter tone, and more vintage-style low-frequency thump.

Both are authentic circuit paths and can be chosen for transient speed, tone, and low-end behavior.​点击展开…

变压器路径实现亚毫秒级瞬态响应，电阻路径呈现经典低频冲击感

级间耦合开关改变可变增益电子管级与输出放大器的连接方式：

变压器路径——在级间添加变压器，实现更快启动时间（可达亚毫秒级），带来微妙的 "smiley curve" 音色并减少低频波动。

电阻路径——采用电阻连接，呈现较慢启动速度、更平坦的音色及更浓郁的旧式低频冲击感。

两种均为真实电路路径，可根据瞬态速度、音色特性及低频表现需求灵活选择。

​Shift Bias, Harmonics, and Threshold in a Single Move

Calibration shifts the internal tube bias and balance – just like adjusting multiple trim pots on the original hardware – changing threshold, harmonic profile, and dynamic feel.

Bias & Balance: Adjusts 6BC8 and 12AX7 tube operating points, influencing even/odd harmonic mix and low-frequency stability.

Threshold Shift: Moves the point where compression begins without changing your input gain.

Dynamic Response: Alters transient smoothness and micro-dynamics.

Tone Shaping: Warms, brightens, or tightens tone depending on bias settings.

It’s a single control that moves multiple internal parameters together, with extra flexibility available via the plugin’s back-panel trims.​点击展开…

一键联动调节偏压、谐波与阈值

校准功能可同步调节内部电子管偏压与平衡——如同在原版硬件上同时调整多个微调电位器——同步改变阈值、谐波特性与动态质感。

偏压与平衡：调整 6BC8 与 12AX7 电子管工作点，影响奇偶谐波混合比例与低频稳定性。

阈值偏移：在不改变输入增益的前提下移动压缩起始点。

动态响应：改变瞬态平滑度与微动态表现。

音色塑造：根据偏压设置实现温暖、明亮或紧致的音色变化。

单旋钮控制即可联动多个内部参数，还可通过插件背板微调获得额外灵活性。

​Advanced Bias & Level Tuning

Click the Relab logo to access advanced controls: three hardware-style trim pots for 6BC8 bias, 6BC8 anode balance, and 12AX7 bias – plus a Reference Level control.

Fine-tune threshold, harmonic mix, transient response, and low-frequency stability with the same adjustments available inside the original hardware,

now with greater flexibility for gain staging and tone shapin.​点击展开…

高级偏压与电平微调

点击 Relab 标识即可启用高级控制：三组硬件式微调电位器分别控制 6BC8 偏压、6BC8 阳极平衡与 12AX7 偏压，另配备参考电平控制旋钮。

通过与原版硬件内部相同的调节方式，精细调整阈值、谐波混合度、瞬态响应及低频稳定性，

现更具备增益架构与音色塑造的灵活调控能力。

官方网址：

https://relabdevelopment.com/relab-176/

产品价格：

官网正价为 199 美元，9 月 15 日前首发促销为 149 美元，

中国区的用户请在总代理飞来音电脑音乐技术购买。​
